| NO | PART NUMBER | DESCRIPTION | ADD TO CART |
|---|---|---|---|
| 1 | 2226700 | SPLIT PIN | |
| 2 | 3206390 | Wheel/Conc. Mixer | https://concretepart.com/product/imer-3206390-wheel-for-minuteman/ |
| 3 | 3206364 | Upright | |
| 4 | 2223650 | Nut | |
| 5 | 2255749 | Draw Bar/Conc. Mixer | |
| 6 | 2222148 | Screw | |
| 7 | 2248889 | Spigot | |
| 8 | 3210893 | Bracket/Saw | https://concretepart.com/product/imer-3210893-bracket-for-minuteman/ |
| 9 | 2222073 | Screw/MN | |
| 10 | 3210890 | Pin | |
| 11 | 3210935 | Gearbox Frame/Conc. Mixer | |
| 12 | 3230055 | Complete Handle MB 96 |
| NO | PART NUMBER | DECSRIPTION | ADD TO CART |
|---|---|---|---|
| 1 | 3210492 | Motor-Reduction Gear/Conc. Mixer | https://concretepart.com/product/imer-3210492-electric-motor-and-gearbox-for-minuteman/ |
| 2 | 3210494 | Motor/Conc. Mixer | |
| 3 | 3210911 | Electr. Box/Conc. Mixer | https://concretepart.com/product/3210911-electric-box-imer-minuteman-and-wheelman-mixer/ |
| 4 | 2223280 | Nut | |
| 5 | 2224530 | Roller/MN | |
| 6 | 2228360 | Pin Key | https://concretepart.com/product/imer-gearbox-pin-key-2228360/ |
| 7 | 3210480 | Shaft | |
| 8 | 2229500 | Key | |
| 9 | 3210485 | Reduction Gear Casing | |
| 10 | 3210482 | Gasket | https://concretepart.com/product/imer-3210482-gasket-for-minuteman-gearbox/ |
| 11 | 2207405 | Stop Ring | https://concretepart.com/product/imer-mixers-stop-ring-2207405/ |
| 12 | 2228819 | Gudgeon Pin | |
| 13 | 2204504 | Bearing | https://concretepart.com/product/imer-mixer-gearbox-bearing-2204504/ |
| 14 | 2204420 | Bearing | |
| 15 | 3210483 | Pinion | |
| 16 | 2229249 | Key | |
| 17 | 3210479 | Gear/MN | |
| 18 | 2204550 | Bearing | |
| 19 | 3210487 | Gear Wheel/Conc. Mixer | IMER Plastic drive gear- IMER Minuteman Mixer 3210487 – Concrete Part Supply |
| 20 | 3210486 | Reduction Gear Casing | |
| 21 | 2222011 | Screw | |
| 22 | 2222012 | Screw | |
| 23 | 2207350 | Stop Ring | |
| 24 | 3210488 | Flange | |
| 25 | 3210496 | Protection/Conc. Mixer | |
| 26 | 3210495 | Protection/Conc. Mixer | |
| 27 | 3210904 | Plastic Fan/MN | |
| 28 | 3209214 | Gasket | |
| 29 | 3210923 | Capacitor/Conc. Mixer | IMER Capacitor for minuteman 3210923 – Concrete Part Supply |
| 30 | 3209217 | Box Push Button Style/MN | https://concretepart.com/product/3209217-imer-minuteman-and-wheelman-electrical-box-only/ |
| 31 | 3209539 | Switch Push Button Type | Imer Minuteman Switch 3209539 – Concrete Part Supply |
| 32 | 3210955 | Pin |

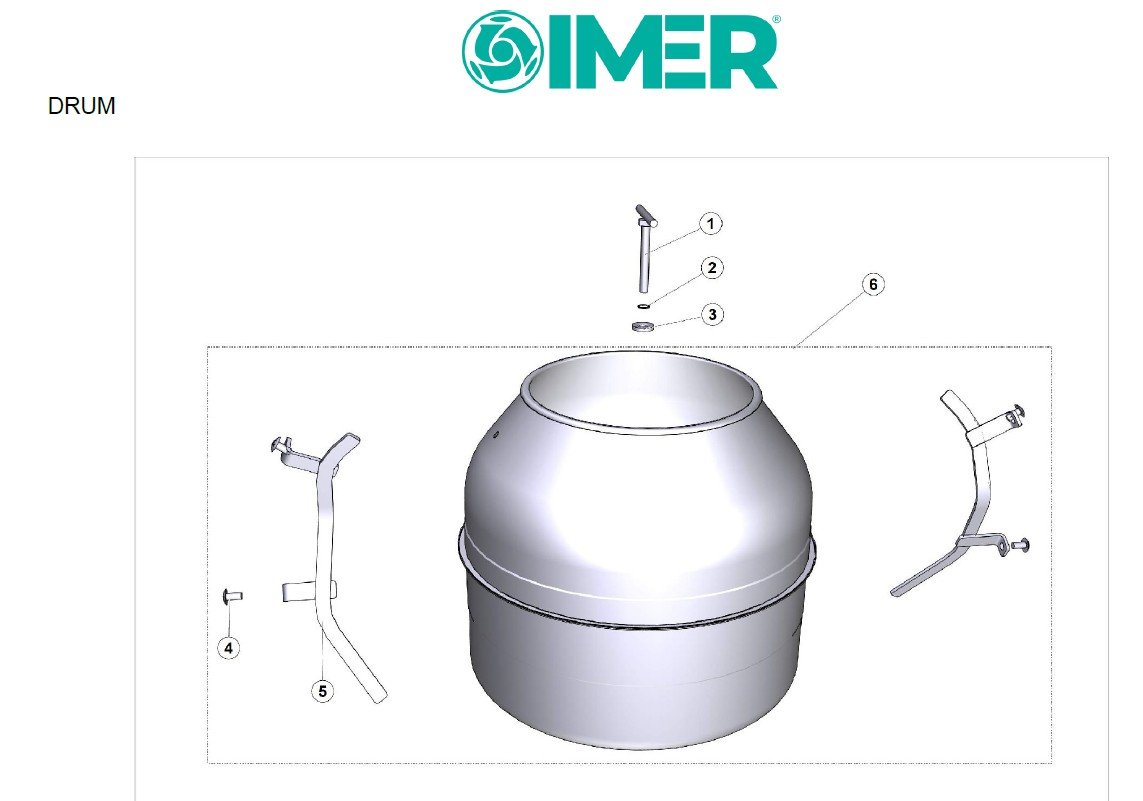

| NO | PART NUMBER | DESCRIPTION | ADD TO CART |
|---|---|---|---|
| 1 | 2222982 | T-Bolt/Conc. Mixer | IMER DRUM CONNECTION BOLT 2222982 T-BOLT – Concrete Part Supply |
| 2 | 3206800 | Stop Ring | IMER MIXER PADDLE STOP RING 3206800 – Concrete Part Supply |
| 3 | 2224428 | Roller | IMER MIXER PADDLE WASHER/ROLLER 2224428 – Concrete Part Supply |
| 4 | 2222193 | Paddle Screw/MN | IMER MIXER PADDLE SCREW 2222193 – Concrete Part Supply |
| 5 | 2250155 | Mixing Paddle/Conc. Mixer | IMER DRUM PADDLE 2250155 – Concrete Part Supply |
| 6 | 2250719 | Drum/Conc. Mixer | IMER MINUTEMAN STEEL DRUM 2250719 – Concrete Part Supply |
